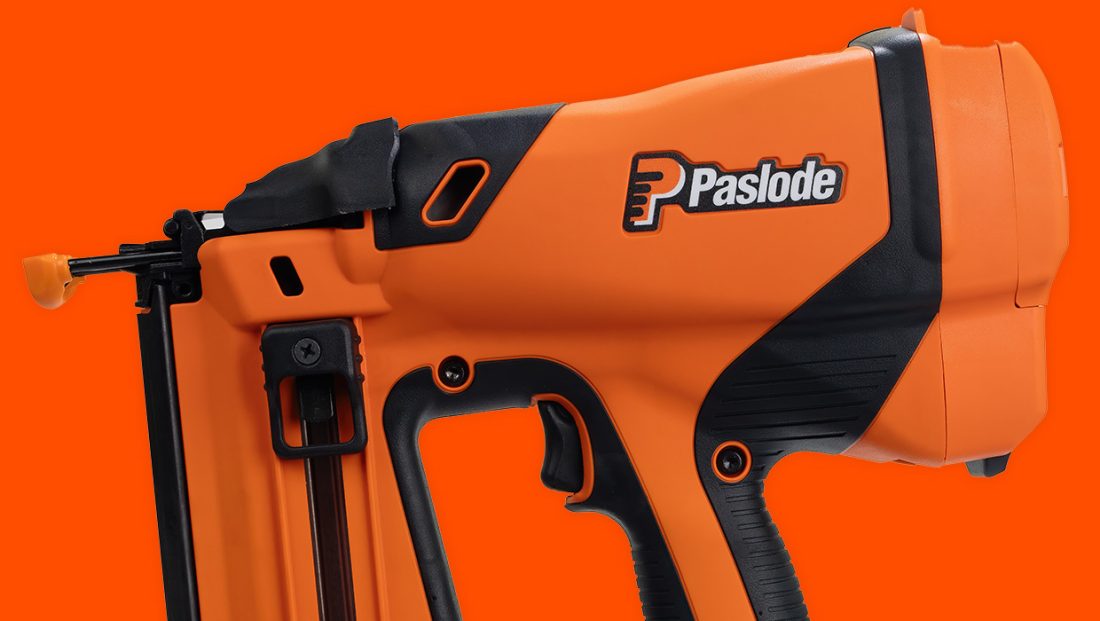

The Paslode 14/16 Gauge Straight TrimMaster™ has been built to perform. Reliable, compact and lightweight, the Straight bradder is the most versatile bradder on the market delivering 16G (C brads) and 14G (ND brads) by simply swapping the nose plate.
Featured Videos
The most versatile finishing tool on the market
We’ve carefully listened to our customers, and there’s no better way to understand how our products perform in the market than through their feedback. Watch as NIU Building showcases the versatility of our new Straight TrimMaster™, demonstrating its use across various applications in their daily operations.
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Specifications
Features
- New Swap’N’Lock : easy to change from C (16ga) and 14G (ND brads) , swappable nose plates, quick release to clear jams
- Contoured body design : provides optimal line of sight, the nose design ensures consistent depth of drive and minimal work surface damage
- Built to perform : battery position for safer handling
- Lithium-Ion battery : drives 12,000 shots per charge time
- Improved cooling when rapid firing
- Quick and easy nail loading
- Delivers reliability , comfort and performance

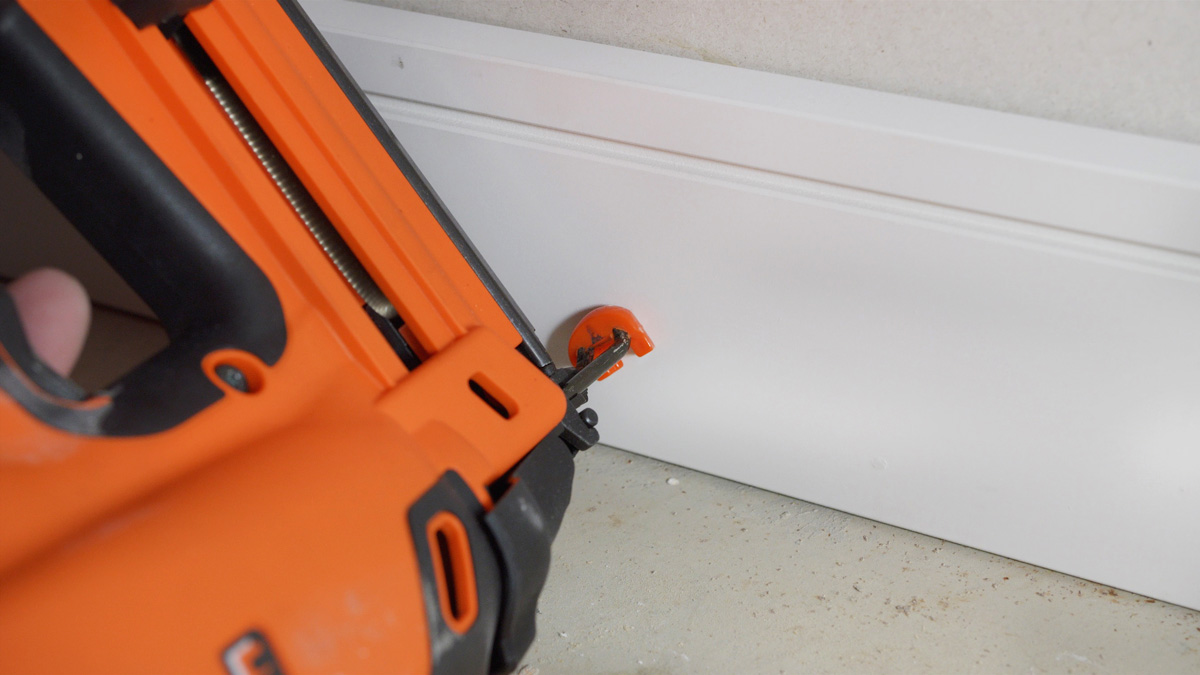

- No Mar Tip prevents damage to timber and cladding surfaces

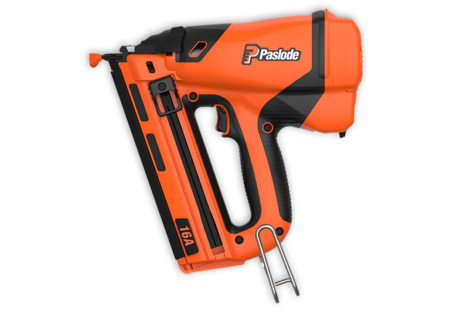

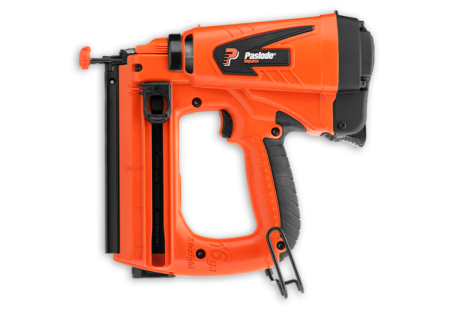

Previous models
| Specifications | |
|---|---|
| Model Name | IM250S-Li |
| Product Code | B20711 |
| Cycle Rate | 1000/hr (2-3/sec. intermittently) |
| Fastener Angle | 0° |
| Weight | 1.95kg (2.1kg with battery) |
| Fastener Range | 16 Gauge – 25-65MM, 14 Gauge 30-62mm |
| Fuel Cell Life | 1,000 Nails (approx.) |
| Dimensions (L x H x W) | 267mm x 299mm x 87mm |
| Magazine Capacity | 50 brads x 2 strips approx. (100 total) |
| Battery Life | 12,000 shots per charge |
| Collation Angle | 0° |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |
| Skirting Boards |
| Quads |
| Panelling |
| Cladding |
| Stair Rails |
| Window Reveals (ND only) |
| Door Jambs (ND only) |
Gallery
Fastener Charts
Brads Compatible with Paslode Straight TrimMaster™
Here’s a list of recommended fasteners to use with your Paslode Straight TrimMaster™.
Brad and Fuel Packs – C Series (16ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20624H | 30mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20628H | 40mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20629H | 45mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20630H | 50mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20631H | 60mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20650 | 25mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20652 | 30mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
Brad and Fuel Packs – ND Series (14ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20641 | 38mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20642 | 45mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20643 | 50mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20645 | 62mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20661 | 40mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20665 | 50mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20669 | 62mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
