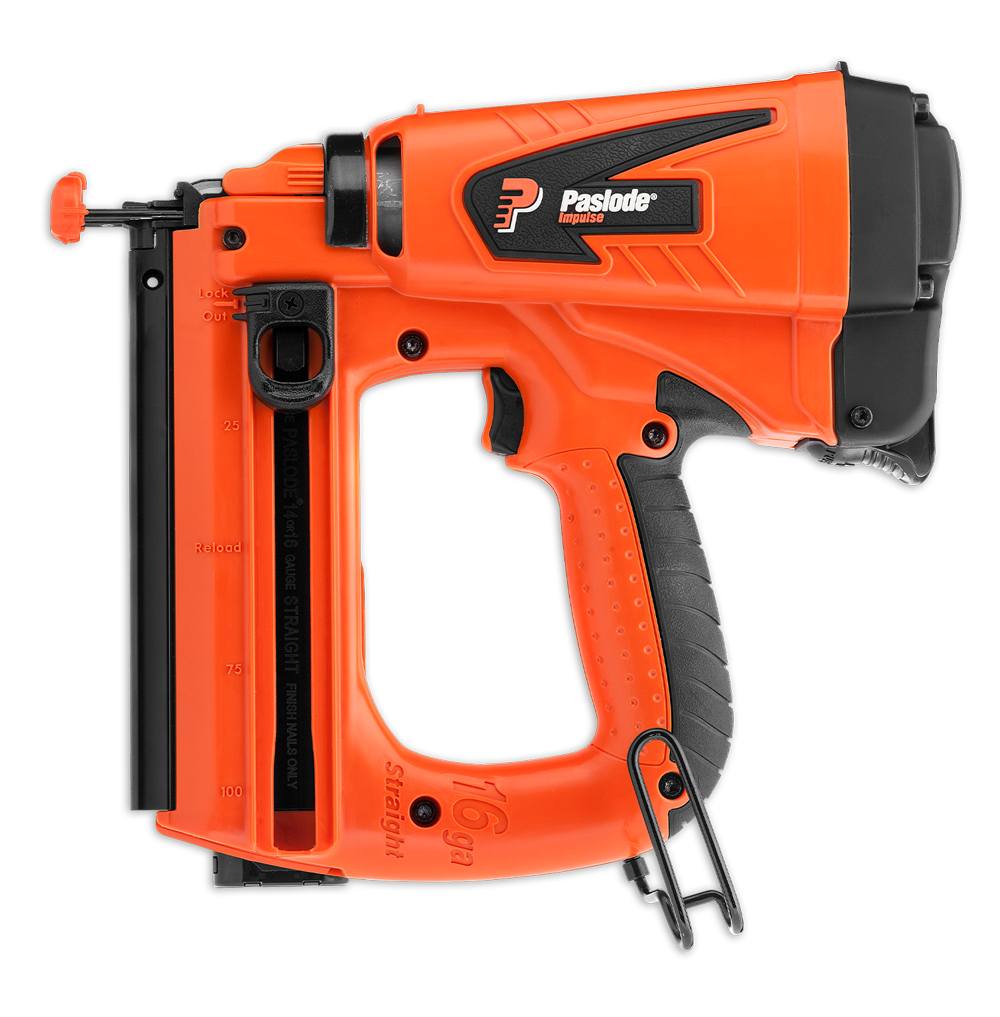

Paslode Straight TrimMaster™ (14Ga 16Ga) large range of brads allows you to seamlessly move from fix out to cladding installation with one tool and a quick change out of the Swap “N” Lock nose plates for both 14Ga and 16Ga Brads – the ultimate in versatility. This is the previous model of the more recent New Paslode Straight TrimMaster™ which is now available via this link.
Note: The Paslode Straight TrimMaster™ is the previous model of the more recent New Paslode Straight TrimMaster™ which is now available via this link.
Gallery
Specifications
Features
- Swap’N’Lock: easy to change from 16ga to 14ga (larger shank diameter)
- Lithium Ion Battery Technology: 50% more shots per charge allowing you to complete the job faster
- Battery On/Off Position: locks battery in place when disengaged for safer handling and minimising the need to replace batteries
- Improved line of sight: for accurate brad placement
- Quick clear nose: reduces downtime if fastener jam occurs
- Brad lock out bar eliminates blank tool firing to protect timber and tool
- Lithium-Ion battery drives 9,000 shots per 1 hour charge time.
- Low actuation pressure reduces operator fatigue.
- Ergonomic design with non-slip hand grip to improve comfort and safety with belt and rafter hook for convenience.
- No Mar Tip prevents damage to timber and cladding surfaces.
Previous models
- N/A
| Model Name | IM250S-Li |
| Product Code | B20710 |
| Cycle Rate | 2-3 brads/second intermittently |
| Weight | 2.1kg |
| Fastener Range | C (16ga) 25-65mm, ND (14ga) 30-62mm |
| Fuel Cell Life | 1000 approx |
| Dimensions (L x H x W) | 267 x 299 x 87mm |
| Battery Life | 9,000 shots per charge |
| Magazine Capacity | 100 approx |
| Collation Angle | 0° |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |

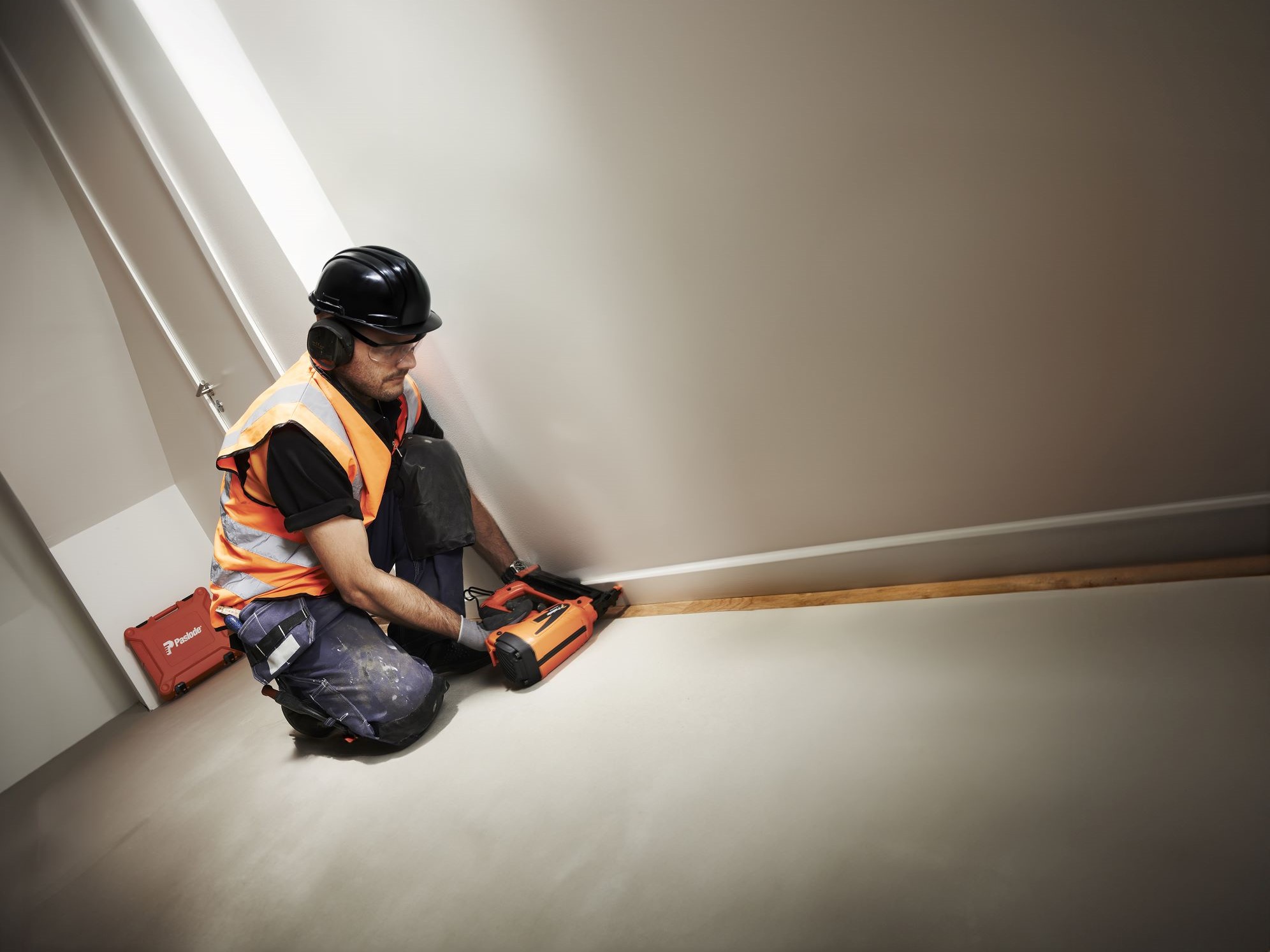

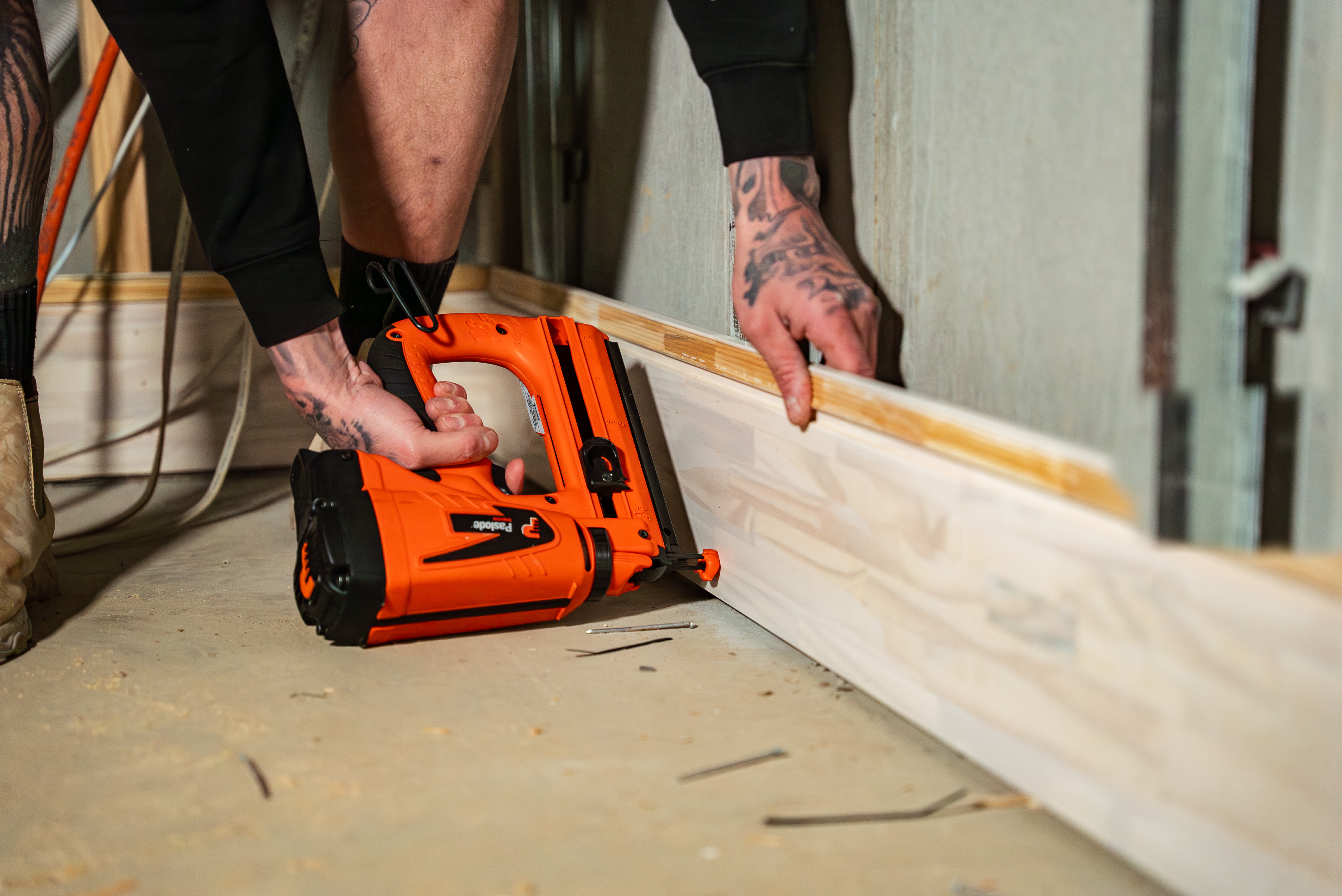

| Skirting Boards |
| Quads |
| Panelling |
| Stair Rails |
Featured Videos
Impulse TrimMaster-LI™ 16ga Straight Bradder
Watch this video to find out all the features of the Impulse TrimMaster-LI™ 16ga Straight Bradder.
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Brads Compatible with Impulse TrimMaster-LI™ 16ga Straight Bradder
Here’s a list of recommended fasteners to use with your Paslode Impulse TrimMaster-LI™ 16ga Straight Bradder.
Brad and Fuel Packs – C Series (16ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20624H | 30mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20628H | 40mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20629H | 45mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20630H | 50mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20631H | 60mm | C series(16ga) | Lost | Zinc Plated | 2 | 2000 |
| B20650 | 25mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20652 | 30mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
Brad and Fuel Packs – ND Series (14ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20641 | 38mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20642 | 45mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20643 | 50mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20645 | 62mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20661 | 40mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20665 | 50mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20669 | 62mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
